Load Parameters

BimlFlex Parameters can be used in many ways. For example, for managing data load windows, filtering and adding default values.

Parameters are most commonly used to define a 'high water mark' or define a filter for what is returned from a source system.

Parameter Management

Once a parameter is created in BimlFlex, the values for the parameter will be managed in the BimlCatalog is used to manage them.

note

Parameter values are persisted in the [bfx].[ConfigVariable] table, and parameter history is logged to the [bfx].[AuditConfigVariable] table.

[bfx].[ConfigVariable] Details

Click a tab for example or detailed column descriptions.

Example

ConfigVariableID	SystemName	ObjectName	VariableName	VariableValue	ExecutionID*	PreviousValue	DataTypeOverride**
5	AWLT_SRC	AWLT_SRC.SalesLT.SalesOrderDetail.ModifiedDate	LastLoadDate	2004-06-01 00:00:00.000	19	1900-01-01	{NULL}
6	AWLT_SRC	AWLT_SRC.SalesLT.ProductDescription.ModifiedDate	LastLoadDate	2004-03-11 10:32:17.973	20	1900-01-01	{NULL}
7	AWLT_SRC	AWLT_SRC.SalesLT.Product.CustomerID	LastCustomerID	21002135	21	19001010	int

tip

• *: This value can be used to get detailed audit history from the [bfx].[Execution] or [rpt].[ExecutionDetails] tables.

Column Definitions

Column Name	Usage
ConfigVariableID	Primary Key value, for internal use only
SystemName	Name of the Connection associated with the parameter
ObjectName	Full name of the Object the parameter is used with
VariableName	Name of the parameter
VariableValue	Last or current persisted value
ExecutionID*	The ExecutionID of the data logistics process execution used to load the parameter
PreviousValue	Previous VariableValue on the last execution
DataTypeOverride	Overrides the implicit variable detection

tip

• *: This value can be used to get detailed audit history from the [bfx].[Execution] or [rpt].[ExecutionDetails] tables.

---

Data Type Override

[DataTypeOverride] is not a column that is populated by default and is only required in limited edge case scenarios. This column should be ignored unless you are experiencing issues with the parameter updating as a result of one of the below scenarios.

The parameter will fail to update in the [bfx].[ConfigVariable] if all the below are true:

• Parameter is an int or decimal datatype
• Parameter already has an entry in [bfx].[ConfigVariable]
• The current [VariableValue] can be evaluated as a date, specifically if ISDATE( [VariableValue] ) = 1 on SQL Server
• The value being loaded does can not be evaluated as a date, specifically if ISDATE( [VariableValue] ) = 0 on SQL Server

note

[DataTypeOverride] currently only supports the int and decimal values.

Updating Data Type Override

The [DataTypeOverride] can only be accessed/viewed on the [bfx].[ConfigVariable] table in the BimlCatalog.

To populate this column use SQL UPDATE statement as outlined in the template below.

SQL Script Template

UPDATE
    [bfx].[ConfigVariable]
SET
    [DataTypeOverride] = [ 'int' | 'decimal' ]
WHERE
    [ConfigVariableID] = `{ ConfigVariableID }`

SQL Script Example

UPDATE
    [bfx].[ConfigVariable]
SET
    [DataTypeOverride] = 'int'
WHERE
    [ConfigVariableID] = 7

---

[bfx].[AuditConfigVariable] Details

Click a tab for example or detailed column descriptions.

Examples

AuditConfigVariableID	ConfigVariableID	SystemName	ObjectName	VariableName	VariableValue	ExecutionID	PreviousValue	RowLastModified
1	5	AWLT_SRC	AWLT_SRC.SalesLT.SalesOrderDetail.ModifiedDate	LastLoadDate	2004-06-01 00:00:00.000	19	1900-01-01	2020-12-01 09:38:47.9900000
17	5	AWLT_SRC	AWLT_SRC.SalesLT.SalesOrderDetail.ModifiedDate	LastLoadDate	2020-12-01 09:50:24.267	76	2004-06-01 00:00:00.000	2020-12-01 09:50:41.8066667

Column Definitions

Column Name	Usage
AuditConfigVariableID	Table SK
ConfigVariableID*	ConfigVariableID of the Parameter
SystemName	Name of the Connection associated with the Parameter
ObjectName	Full name of the Object the Parameter is used with
VariableName	Name of the Parameter
VariableValue	Current persisted value for the listed execution
ExecutionID**	The ExecutionID of the Package/Pipeline used to load the Parameter
PreviousValue	Previous VariableValue prior to the listed execution
RowLastModified	Date the audit record was created

tip

• *: This value can be used to get audit record from the [bfx].[ConfigVariable] table.
• **: This value can be used to get detailed audit history from the [bfx].[Execution] or [rpt].[ExecutionDetails] tables.

---

Parameter Usage

Below demonstrates how a data parameter has been incorporated into a source to target loading package. Note that this load starts and ends with either a sequence containers (SSIS) or activities (ADF) that are specific for managing parameters.

Each time a package or pipeline is ran, BimlFlex will store the last value and update it as it changes over time.

SSIS Architecture

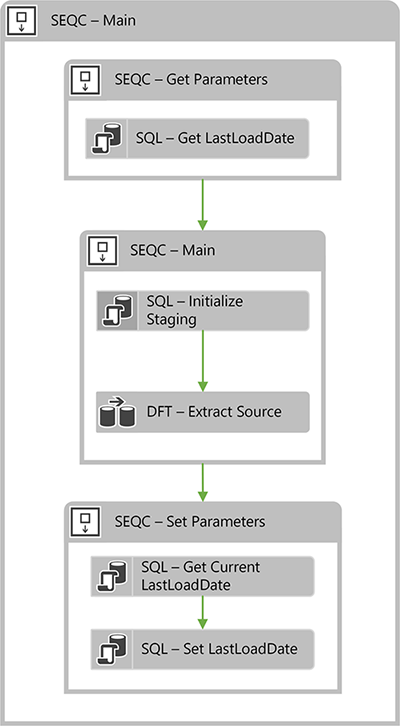

The process starts before the main container (SEQC - Main).

The initial Sequence Container (SEQC - Get Parameters) will have a Execute SQL Task to look up any relevant parameters. These task (SQL - Get Parameter) are used to check the BimlCatalog for an existing parameter value for the PARAMETER.

The retrieved value will be injected in to the source query filter clause using the specified logic from the metadata.

The final Sequence Container (SEQC- Set Parameters) after the main logic then handles setting the parameters. There is a Execute SQL Task to grab the latest value (SQL - Get Current Parameter) from the staged data. A following Execute SQL Task (SQL - Set Parameter) is then used to persist the value retrieved into the BimlCatalog.

ADF Architecture

Activities are added to the beginning of the pipeline that retrieve the last value and the next value to be recorded after execution completes.

The initial Lookup Activity (LKP_Parameter) is used to check the BimlCatalog for an existing parameter value for the PARAMETER. If none are present, it will generate one using the DEFAULT value that is configured. If one is already present, it will retrieve the value. The retrieved [VariableValue] value is then used to define the starting range for the Source Query.

The other Lookup Activity (LKP_ParameterToName) is used to query the Source System. This uses the PARAMETER SQL against the COLUMN and stores the value in the pipeline as the PARAMETER TO NAME.

These values are then injected into the source query filter clause to limit values that are then returned from the Source System.

The ending SQL Server Stored Procedure Activity (LOG_Parameter) is then used to persist the value retrieved by the PARAMETER TO NAME into the BimlCatalog.

note

The ADF Architecture requires Window Parameters when using a Parameter.

See Window Parameters for more details.

---

Creating Parameters in BimlFlex

Parameters can be added in BimlFlex through the Parameter Editor, accessible from the BimlFlex main menu.

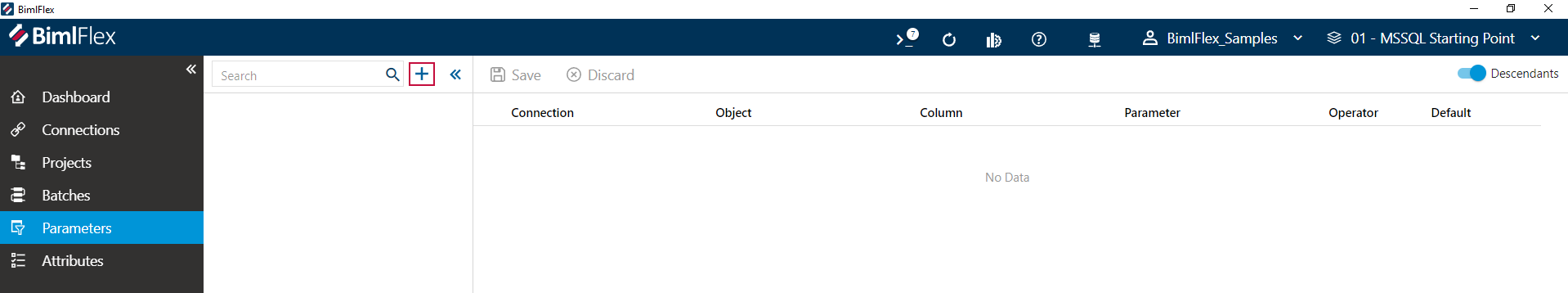

To add a new parameters, click the + button in the Treeview menu.

Base Parameter

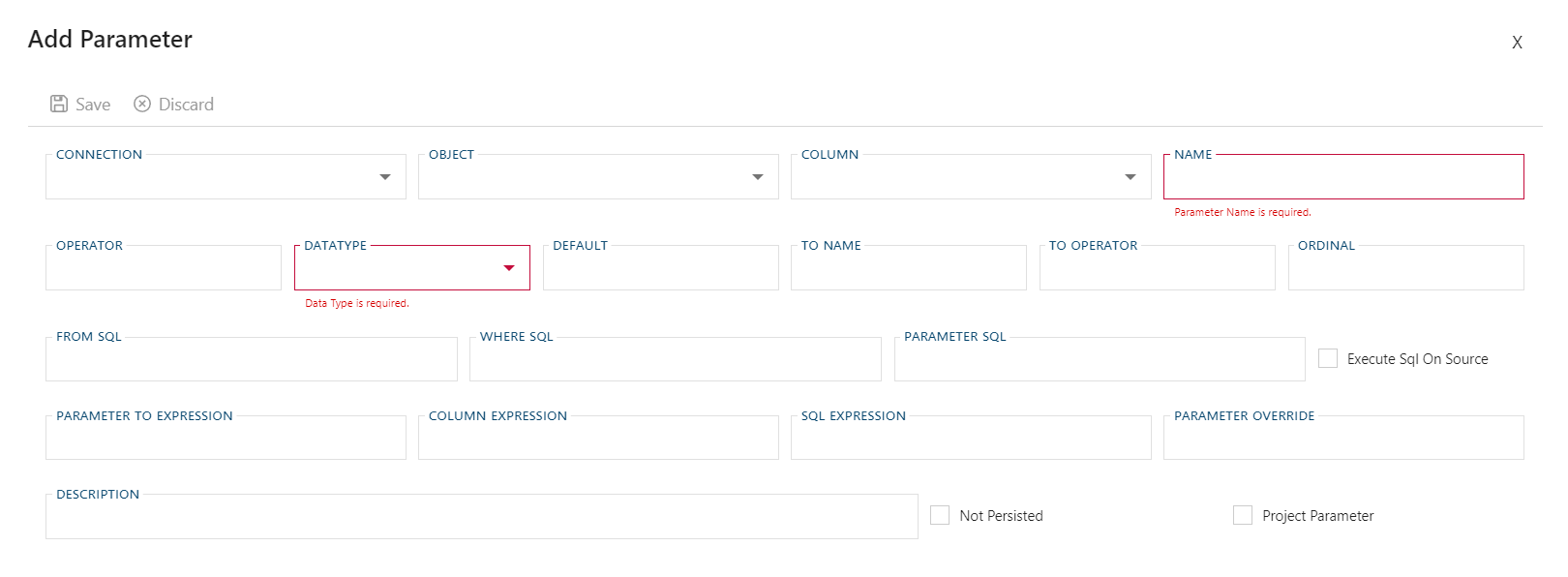

The Base Parameter settings are the core fields that are required to define a parameter in BimlFlex. With the exception of PARAMETER SQL, these are Source System agnostic. Configuration of the base Parameter itself remains the same across Source Systems.

note

• *: It is recommended that you use String for dates as SSIS sometimes finds it easier to deal with string representations.
• **: See Parameter SQL for more examples

danger

Execute SQL On Source, along with Parameter To Name and Parameter To Operator, are required fields when configuring a Parameter for ADF.

Default

The parameter load value to use the first time the load happens, when there is no existing parameter value stored in the BimlCatalog database. For high water mark scenarios this is commonly a valid value guaranteed to be lower than any existing data, such as 1900-01-01 for dates. When adding dates in Excel, use the text-defining prefix so the data is kept as text rather than transformed into Excels internal date format, '1900-01-01.

Parameter SQL

Although the field is named PARAMETER SQL, it is easier to this of this field as a Parameter QUERY.

In a SQL based Source System this will correlate to a SQL Statement that is appended to the the WHERE clause.

In Dynamics, this will be an XML based statement for a <attribute/> under the <fetch/entity/> node or a complete replacement of the generated <fetch/> statement.

danger

Ensure this value is configured to align with how EXECUTE SQL ON SOURCE is configured.

When true this should mirror the syntax needed on the Source System.

When false this should mirror the syntax needed on the Target System.

T-SQL (Microsoft)

Field	Description
Parameter SQL*	CONVERT(VARCHAR(27),MAX(@@this),121)

SnowSQL

Field	Description
Parameter SQL*	TO_VARCHAR(MAX(@@this), 'YYYY-MM-DD HH24:MI:SS.FF9')

Oracle

Field	Description
Parameter SQL*	CAST(TO_CHAR(MAX(@@this), 'YYYY-MM-DD HH24:MI:SS.FFFFFF') AS VARCHAR2(27))

PostgresSQL

Field	Description
Parameter SQL*	CAST(TO_CHAR(MAX(@@this), 'YYYY-MM-DD HH24:MI:SS') AS VARCHAR(23))

MySQL

Field	Description
Parameter SQL*	LEFT(DATE_FORMAT(DATE_ADD(MAX(@@this), INTERVAL 0 DAY), '%Y-%m-%d %T.%f'), 27)

Dynamics - Attribute

Field	Description
Parameter SQL**	<attribute name="modifiedon" alias="next_modifiedon" aggregate="max" />

Dynamics Pattern for <Attribute/> PARAMETER SQL

<fetch distinct="false" mapping="logical" aggregate="true">
  <entity name="`{object}`">
     `{Parameter SQL Value}`
  </entity>
</fetch>

danger

This pattern is only valid for Dynamics entities with less than 50k records.

If the Dynamics Entity has more than 50k records then use the Dynamics - Blank or Dynamics - Fetch patterns.

Dynamics - Blank

When PARAMETER SQL is blank BimlFlex will generate a <fetch/> statement using the following pattern.

Dynamics Pattern for <Attribute/> PARAMETER SQL:

<fetch distinct="false" mapping="logical">
    <entity name="`{object}`">
        <attribute name="`{column}`" alias="`{Parameter To Name}`" />
        <order attribute="`{column}`" descending="true" />
    </entity>
</fetch>

tip

If you require more advanced logic you can customize the entire <fetch/> statement simply by defining it.

Dynamics - Fetch

Field	Description
Parameter SQL**	<fetch distinct="false" mapping="logical">     <entity name="account">         <attribute name="modifiedon" alias="next_modifiedon" aggregate="max" />         <order attribute="modifiedon" descending="true" />     </entity> <fetch/>

---

note

• *: All SQL based Source Systems will have similar pattern but differ in syntax.
• **: When using Dynamics the first characters determine logic.
  • If the PARAMETER SQL starts with <fetch then it will override the entire fetch statement with.
  • If not, it will use the Dynamics - Attribute pattern.
  • If blank it will use the Dynamics - Blank pattern.

Window Parameters

Window Parameters are configured to load between two points.

Useful when it is not possible to derive the new parameter from the destination, such as a Blob file. This allows the from and to to be derived and applied in the source query using only the source data.

These get configured by defining the below fields.

Description

Field	Description
Parameter To Name	Name of the parameter ending window parameter. Cannot be same as Parameter Name.
Parameter To Operator	Operator to use again the PARAMETER TO NAME when applied to the source Column.

Example

Field	Description
Parameter To Name	NextLoadDate
Parameter To Operator	<=

---

danger

These, along with Execute SQL On Source, are required fields when configuring a Parameter for ADF.

BimlFlex Pattern for Window Parameters:

`{Existing WHERE Clause}` `{AND if Needed}`
     `{Column}` `{Operator}` `Parameter`
    AND `{Column}` `{Parameter To Operator}` `{Parameter To Name}`

Example:

WHERE
    [SalesLT].[ModifiedDate] > `{LastLoadDate Value}`
    AND [SalesLT].[ModifiedDate] <= `{NextLoadDate Value}`

Parameter Overrides

These are provided to either apply alternate workarounds or replace sections of the the automated code generation.

Description

Field	Description
Column Expression	Used to override the column part of the WHERE clause in the source query.
Parameter SQL Expression	Used to override the entire WHERE clause in the source query.
Parameter Override	Used to override the parameter part of the WHERE clause in the source query.

Example

Field	Description
Column Expression	COALESCE(ModifiedDate, CreatedDate)
Parameter SQL Expression
Parameter Override	DATEADD(dd, -3, ?)

---

Column Expression

Used to override the column part of the WHERE clause in the source query to tweak the column expression. Useful when extra logic is required for the filter.

Example expression

COALESCE(ModifiedDate, CreatedDate)

Parameter Override

Used to override the parameter part of the WHERE clause in the source query to tweak the column expression. Useful when extra logic is required for the filter.

Example expression

DATEADD(dd, -3, ?)

Parameters in Extension Points

Extension Point-based parameters are available for more complex scenarios where the logic needed for the flow and parameter isn't easily injected through the normal parameter process.

It also supports specifying Project level Parameters that are commonly available in all packages in the project.

Extension Point Project Parameters (SSIS)

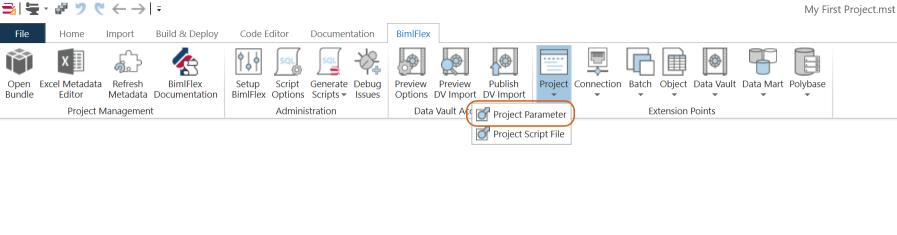

Add Extension Points in BimlStudio.

More information: BimlFlex Extension Points

The newly created file contains some sample scripts:

<#@ extension bundle="BimlFlex.bimlb" extensionpoint="ProjectParameter" target="<ProjectName>" #>

<Parameter Name="ServerName" DataType="String" IsRequired="true">localhost</Parameter>
<Parameter Name="UserName" DataType="String" IsRequired="true">varigence</Parameter>
<Parameter Name="UserPassword" DataType="String" IsRequired="true">P@ssw0rd!</Parameter>

The directives are required for the Extension Point. An additional attribute for the target of the Extension Point needs to be specified.

For a project parameter, this is the name of the project it targets.

Once the Project Parameter is defined through the Extension Point it can be reused throughout the project in either metadata or additional Extension Points as needed.

Extension Point Package Parameters (SSIS)

Package Parameters only affect the individual package it targets.

Package parameters can be used when a single package requires bespoke logic that doesn't fit the existing parameter logic.

These parameters can be used for any logic and might not need to be persisted in the BimlCatalog database.

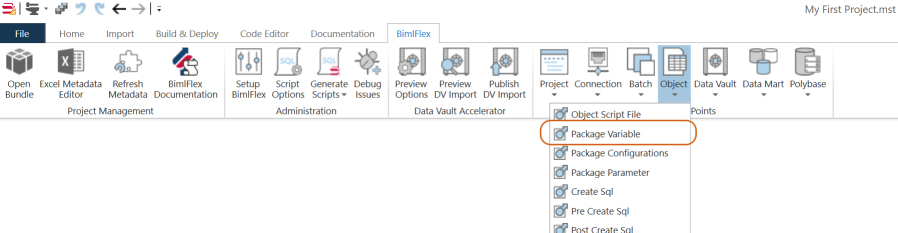

Add Extension Points in BimlStudio

The newly created file contains some sample scripts:

<#@ extension bundle="BimlFlex.bimlb" extensionpoint="PackageVariable" target="<ObjectName>"#>
<#@ property name="table" type="BimlFlexModelWrapper.ObjectsWrapper" #>

<#* CustomOutput.ObjectInherit = true; *#>
<Variable Name="TenantCode" DataType="String">UNK</Variable>
<Variable Name="CurrentModifiedDate" DataType="String" Namespace="User">1900-01-01</Variable>

The directives are required for the Extension Point.

An additional attribute for the target of the Extension Point needs to be specified.

For a package parameter, this is the name of the package it targets.

Once the Package Parameter is defined through the Extension Point it can be reused throughout the Package in either metadata or additional Extension Points as needed.
